In the realm of physics, where groundbreaking discoveries often emerge from innovative thinking, a team of researchers at ETH Zurich and EPFL has unveiled a revolutionary approach to particle detection. Their creation, dubbed PLATON, is a camera system that promises to transform the way we track invisible particles, offering a more efficient and cost-effective solution compared to traditional methods. This cutting-edge technology not only has the potential to revolutionize particle physics but also hints at broader applications in medical imaging and beyond.
A New Paradigm in Particle Detection
Particle detectors, the unsung heroes of modern physics, are tasked with the daunting challenge of reconstructing the paths of elementary particles as they traverse through dense materials. The current state of the art relies on segmented detectors, which divide the detection volume into millions of tiny units, each with its own optical fibers and photomultiplier tubes. While highly precise, this approach faces scalability issues and incurs significant technological and financial costs.

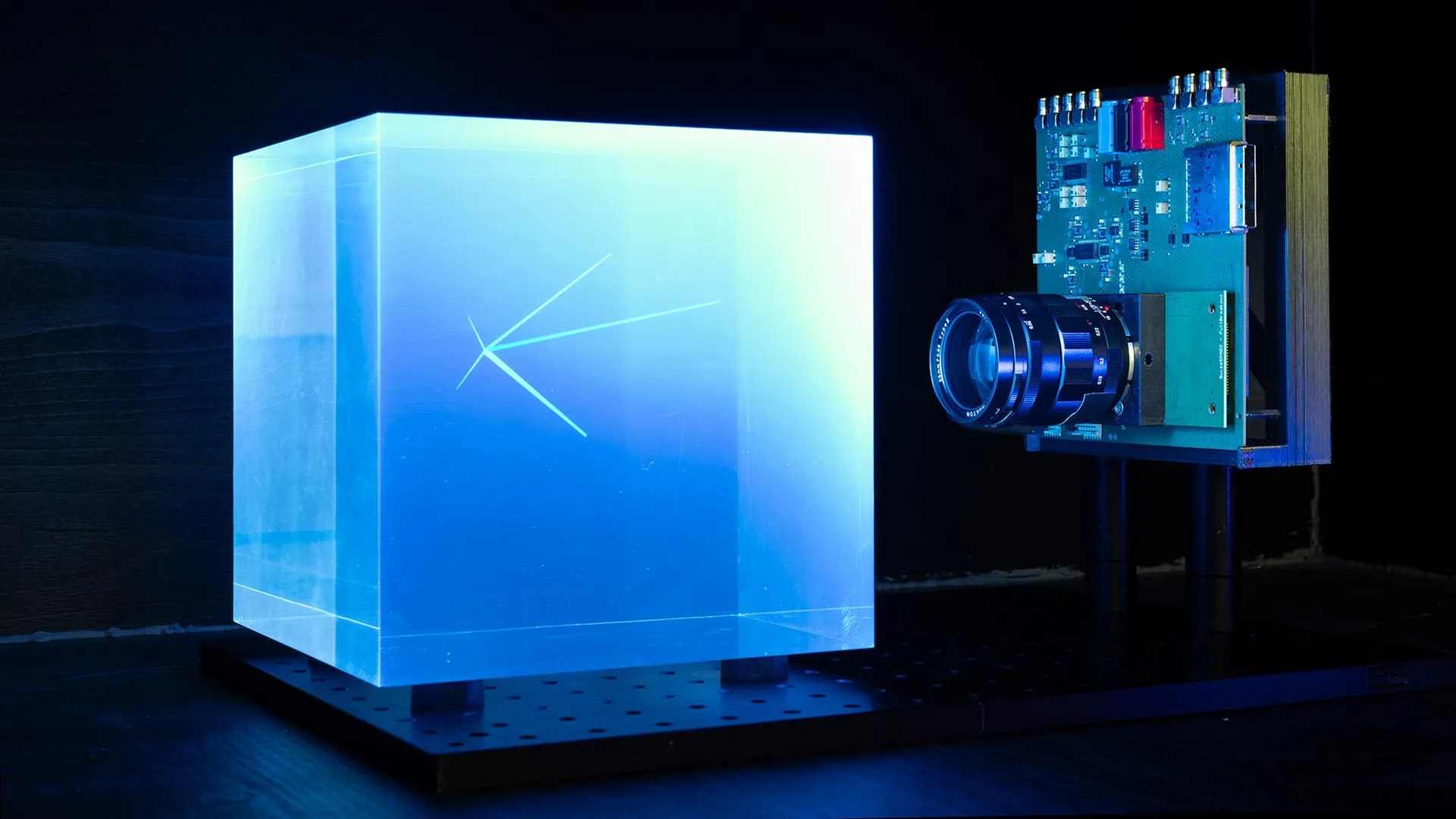

Here's where PLATON steps in, offering a radical departure from conventional wisdom. Instead of dividing the detector, PLATON employs advanced camera technology to reconstruct the origin of light within a large, unsegmented block of scintillator material. This innovative approach, inspired by light field cameras, captures not just the intensity of light but also its direction, enabling the reconstruction of a scene in three dimensions.
The Power of Light Field Cameras
What makes PLATON particularly intriguing is its ability to detect individual photons and reconstruct particle tracks even in low-light conditions. This is achieved through the use of a micro-lens array (MLA) and a single-photon avalanche diode (SPAD) array sensor. The MLA, consisting of microscopic lenses, records the scene from slightly different angles, allowing the system to reconstruct a light field that describes the intensity, position, and direction of incoming light.
Testing the Waters
The researchers put PLATON to the test in a series of laboratory experiments, evaluating its spatial resolution and sensitivity. Using light levels ranging from several hundred detected photons down to just five, they demonstrated the system's ability to detect electrons and reconstruct their positions inside a block of plastic scintillator. The results, closely matched by simulations, provided a strong validation of the detector's performance.
Looking Ahead
Looking forward, the team is working on an upgraded version of PLATON, aiming to improve photon detection efficiency and provide sub-nanosecond timing for individual photons. This added timing information could significantly enhance the system's ability to determine the origin of each photon and improve the reconstruction of particle tracks. The researchers also plan to expand the field of view and collect more light, further boosting the system's spatial resolution.
AI-Powered Particle Tracking
One of the most exciting aspects of PLATON is its potential to leverage artificial intelligence for particle tracking. The team has developed a neural network-based image-processing method that can identify correlations in the scintillation photons recorded by the detector, allowing it to reconstruct the original particle interaction. Simulations suggest that an unsegmented PLATON detector could achieve spatial resolution below 1mm and identify neutrino interactions with high purity and efficiency.
Scaling Up and Beyond
The researchers also explored the scalability of PLATON, modeling a simplified point-like source of photons in a one-cubic-meter block of unsegmented scintillator. The simulations indicate that a detector of this size could achieve spatial resolution of a few millimeters, comparable to state-of-the-art plastic scintillator detectors. This is a significant achievement, as PLATON would accomplish it without the need for millions of individual pieces.
A Technology with Broad Applications
Beyond its potential in particle physics, PLATON has sparked the interest of the medical community. The researchers have filed three patents covering the use of PLATON technology in positron emission tomography (PET), a medical imaging method that tracks radioactive tracers inside the body to reveal activity in organs and tissues. This application of PLATON technology could revolutionize medical imaging, offering a more precise and cost-effective solution.
In conclusion, PLATON represents a significant leap forward in particle detection, offering a more efficient and cost-effective solution compared to traditional methods. Its potential applications in particle physics, medical imaging, and beyond make it a technology to watch. As the researchers continue to refine and expand the capabilities of PLATON, we can expect to see even more exciting developments in the years to come.
